LiDAR vs RTK vs Vision: How Robot Mower Navigation Works

LiDAR vs RTK vs Vision is a practical navigation choice for yards with different trees, edges and obstacles. Robot mower marketing often lists RTK, LiDAR and AI vision together. Those terms describe different kinds of information, not interchangeable promises. A buyer needs to know how the exact mower establishes its position, recognizes obstacles, keeps a boundary and recovers when one input becomes unreliable.

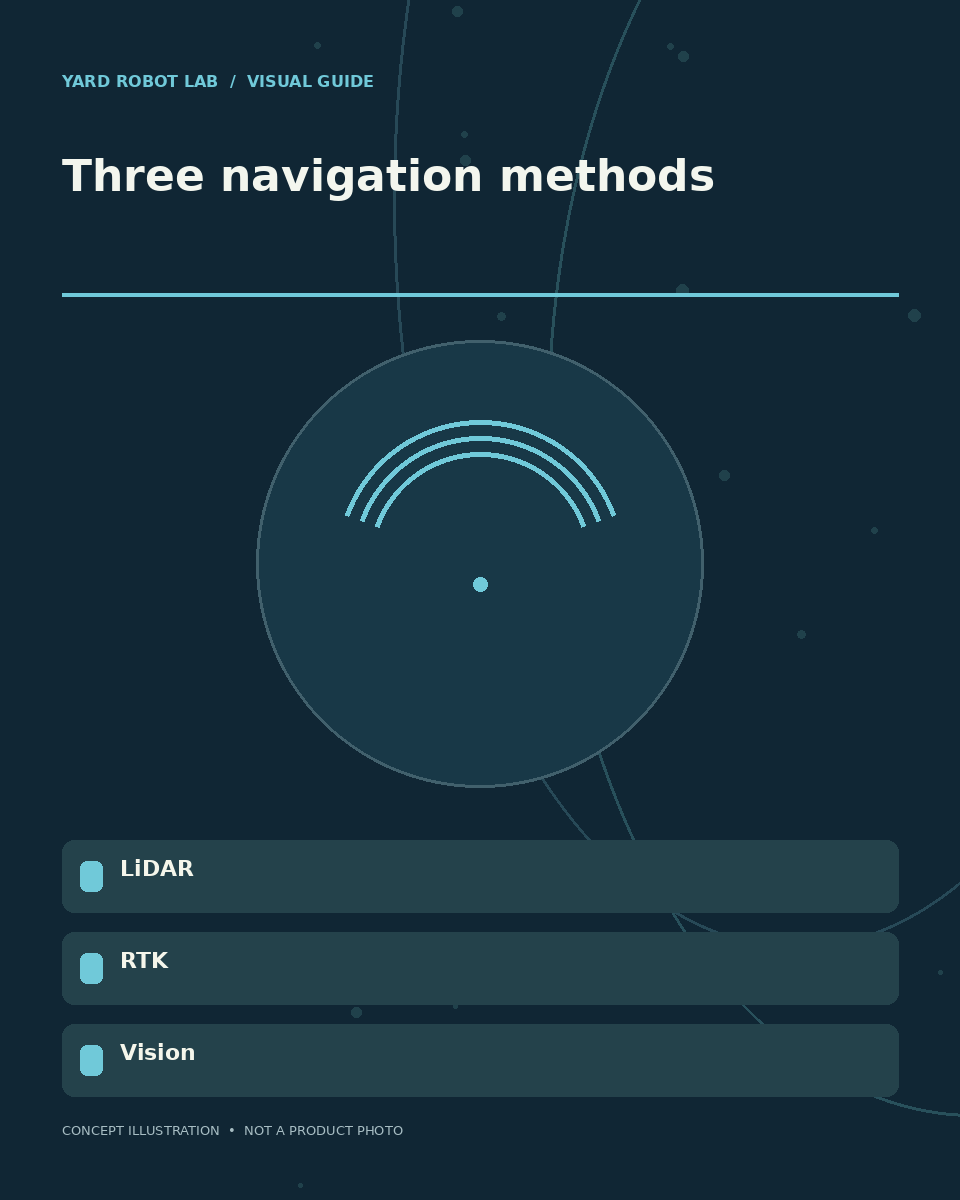

Concept illustration of a robot mower using LiDAR, RTK satellite positioning, and camera vision around obstacles
Original Yard Robot Lab concept illustration; not a product photograph.

GNSS and RTK: Position from satellites

GNSS uses satellite signals to estimate location. RTK applies corrections to improve accuracy when the receiver has usable signals and the correction source is available. Corrections may arrive from a local station or network, depending on the machine. Under heavy tree cover or beside buildings, satellite blockage or reflections can still matter. Do not turn a published precision figure from favorable conditions into a guarantee at a pond edge beneath trees.

LiDAR: Geometry around the machine

A current implementation to examine: MOVA’s LiDAX mowers combine 360° 3D LiDAR with AI vision, while the 2000 AWD and 3000 AWD use LiDAR plus dual AI vision without an RTK station. Our MOVA LiDAX model comparison shows how those systems differ across the lineup.

LiDAR measures distances to surrounding surfaces. A mower can use that geometry to recognize features or help localize, depending on its design. A LiDAR sensor does not by itself tell the buyer how the system behaves in a large open area, a repetitive fence corridor or after a landscape changes. Ask the manufacturer how the exact model builds and updates its map and what happens when useful landmarks are sparse.

Vision: Images and interpretation

Cameras can identify objects and visual features. The role may be obstacle detection, boundary recognition, localization or a combination. Lighting, weather and lens condition deserve consideration. The presence of a camera does not prove that the mower can navigate autonomously when its satellite fix disappears. Ask which function the camera performs and what the machine does if the scene is obscured.

Sensor fusion and short-term motion estimates

A machine may use several sources along with an inertial measurement unit and wheel movement to estimate where it is between observations. These supporting inputs can help continuity but may accumulate error if a reliable position is not recovered. An architecture diagram or current manual is stronger evidence than a list of sensor names. Ask how the mower decides it is uncertain and whether it stops safely, retraces or requests assistance.

Compare behavior by situation

Situation What to ask about the exact model
Open lawn Primary positioning and correction requirements
Under trees Fallback localization and duration
Narrow passage Recovery if signals or landmarks weaken
Low light or rain Camera and obstacle-handling limits
Changed yard How the map is updated
Return to dock What happens after a low-battery positioning fault

Connectivity is a separate layer

Wi-Fi, Bluetooth and cellular service can deliver app commands, updates or correction data. A strong radio connection does not itself provide a clear satellite view. Conversely, a mower may keep working locally during an internet interruption depending on its design. Record positioning and communication dependencies in separate model fields.

Use the property as the test

Map the lawn’s tree groups, walls, tight passages and hazards. Ask a dealer to explain the sensor roles in those places and demonstrate the most difficult route if available. Keep manufacturer claims attributed to the exact variant and software version. YRL will identify any future physical test separately from this document-based comparison.

See wire-free mowing and under-trees planning for installation and property checklists.

A failure-recovery question is often the deciding one

Imagine a mower that loses its satellite fix beneath trees while traveling between two open lawns. The buyer needs to know whether it stops in place, continues using local sensing, returns along a known route or requires a person. The answer can matter more than an impressive open-sky accuracy figure. Ask the vendor what the current software does, how long fallback can last and how the mower reports uncertainty.

Can two models with LiDAR be treated alike? No. Sensor range, placement, map software and the role assigned to LiDAR can differ. Compare documented behavior for the exact model rather than counting hardware labels.

Is an obstacle camera the same as a vision-navigation system? Not necessarily. Ask whether the camera informs route position, object detection or both. If the manufacturer’s documentation is silent, mark that function unresolved.

What if a map changes? Landscaping, seasonal foliage and temporary objects can alter the scene. Check how a model updates its map and what the owner must do after a major yard change. This is an ownership task as well as an installation concern.

The model comparison table should distinguish manufacturer claims, YRL interpretation and any future field test. An inference from a listed sensor deserves an explicit label rather than the authority of a tested result.

Ask what happens between sensor readings

RTK can provide precise satellite-based location when the correction path and sky view are adequate. LiDAR observes surrounding geometry, while cameras interpret visual scenes. A model may combine those observations with wheel motion and stored maps. The useful ownership question is how long it can remain safely localized when one source is briefly weak and what it does if confidence does not return. Ask the manufacturer for the exact model’s stop, reroute and alert behavior rather than assuming all products with the same acronym respond alike.

A comparison on one real property

Imagine a lawn with an open front yard, a tree-lined side passage and a narrow route behind a garage. Check open-sky positioning in front, then the transition under trees and finally the dock approach behind the building. RTK may have a harder view in the passage; a camera may see different light or changing foliage; LiDAR needs useful geometry. Those are test questions, not a ranking of technologies. The selected mower must maintain its permitted boundary and recover the route with its actual combination of sensors.

Document the positioning mode, network connection, firmware version and outcome for each location. If the mower cannot demonstrate the hardest segment, keep that area out of a promised acreage or labor-saving estimate. If a dealer offers a trial, make the shaded passage and return route the first tests. A feature list becomes valuable only when it predicts reliable behavior on the owner’s property.

In summary: No sensor acronym chooses a mower on its own. Understand the exact model’s navigation, boundary and failure-recovery behavior in the conditions the property actually presents.

Manufacturer examples: Husqvarna EPOS explanation and Mammotion LUBA 3 AWD product family. Verify exact variant behavior separately.
